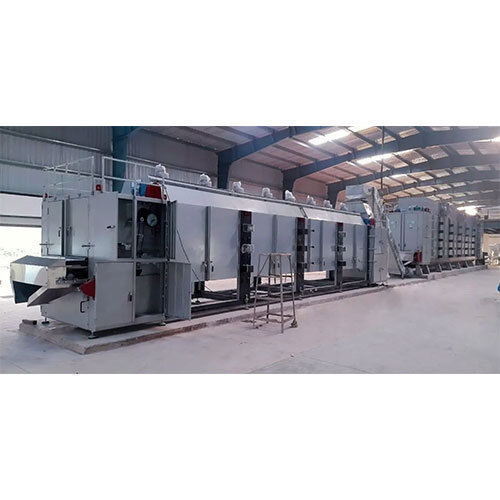

BEETROOT DEHYDRATION PLANT

BEETROOT DEHYDRATION PLANT

15000000 INR/Unit

Product Details:

  • Product Type BEETROOT DEHYDRATION PLANT
  • General Use Industrial
  • Material Stainless Steel
  • Computerized No
  • Automatic Yes
  • Voltage 220-440 Volt (v)
  • Feature ECO Friendly
  • Click to View more
X

BEETROOT DEHYDRATION PLANT Price And Quantity

  • 15000000 INR/Unit
  • 1 Unit

BEETROOT DEHYDRATION PLANT Product Specifications

  • Industrial
  • Yes
  • BEETROOT DEHYDRATION PLANT
  • No
  • 1 Year
  • Stainless Steel
  • Silver
  • ECO Friendly
  • 220-440 Volt (v)

BEETROOT DEHYDRATION PLANT Trade Information

  • 10 Unit Per Month
  • 10-15 Days

Product Description

BEETROOT DEHYDRATION PLANT is designed to provide the means of processing fresh beetroots into good quality dehydrated produce. This specialized plant employs the latest techniques to preserve nutrient and flavor enrichment making it suitable for diverse uses in the food industry. It also assists in lowering cutting costs of production as well as lowering the wastage. The BEETROOT DEHYDRATION PLANT is a valuable component in an organization since it proactively encourages healthy, flavorful ingredients to various markets.

DRYER SPECIFICATION:
MODEL VEG_I VEG_II VEG_III
PRODUCT VEGETABLES VEGETABLES VEGETABLES
RAW MATERIAL INPUT CAPACITY 400 TO 500 KG/HR 1000 - 1100 Kg/hr 1750 – 1800 Kg/hr
*MOISTURE TO EVAPORATE 400 to 450 KG/HR 900 to 980Kg/hr 1600 to 1650 Kg/hr
*HEAT LOAD 3,65,000 KCAL/HR @ 70% DRYER EFFICIENCY 10,50,000 KCAL/HR @ 70% DRYER EFFICIENCY 16,25,000 KCAL/HR @ 70% DRYER EFFICIENCY
SUGGESTED HEAT EQUIPMENT 6,00,000 KCAL/HR 15,00,000 KCAL/HR 25,00,000 Kcal/ Hr
TOTAL DRYING BED AREA 54 SQ.MTR 108 SQ.MTR 175.5 SQ.MTR
MATERIAL BED THICKNESS 60-100 MAT THICKNESS 60-100 MAT THICKNESS 60-100 MM MAT THICKNESS
*DRYING TIME 4-5 HOURS 4-5 HOURS 4-5 HOURS
1ST STAGE DRYING BED AREA X LAYER 1.5 MTR X 6 MTR – 5 LAYER
45 SQ.MTR
1.5MTR X9 MTR X 5LAYER 67.5SQ.MTR 1.5 MTR X 18 MTR – 5 LAYER
135 SQ.MTR
1ST STAGE WORKING TEMPERATURE 70-80OC 70 - 80OC 70-80O C - AS MAXIMUM
2ND STAGE DRYING BED AREA X LAYER 1.5 MTR X 6 MTR – 1 LAYER –
9 SQ MTR
1.5MTR X 9 MTR X 3 LAYER –
40.5 SQ.MTR
1.5 MTR X 9 MTR – 3 LAYER--- 40.5 SQ.MTR
2ND STAGE WORKING TEMPERATURE CONDITIONING UNIT 45-55OC 45-55O C
CONNECTED LOAD 1ST STAGE VIBRATOR FEEDER 0.75 KW X 1 NOS 0.75 KW 0.75 KW X 1 NOS 0.75 KW 0.75 KW x 1 NOS 0.75 KW
MATERIAL LEVELLER 0.75 KW X 1 NOS 0.75 KW 0.75 KW X 1 NOS 0.75 KW 0.75 KW x 1 NOS 0.75 KW
SS CONVEYOR BELT 0.75 KW X 6 NOS 4.50 KW 0.75 KW X 5 NOS 3.75 KW 1.1 KW X 5 NOS 5.5 KW
BRUSH AND MIXER 0.75 X 2 NOS 1.50 KW 0.75 KW X 2 NOS 1.50 KW 0.75 X 2 NOS 1.5 KW
MIDDLE MIXER DRIVE NOT APPLICABLE 0.75 KW X 1 NOS 0.75 KW 0.75 X 2 NOS 1.5 KW
Conditioning fans 2.2 KW X 2 NOS 4.4 KW NOT APPLICABLE NOT APPLICABLE
ID FAN 11 KW X 2 NOS 22.00 KW 11 KW X 3 NOS 33.00 KW 11 KW X 6 NOS 66 KW
Total KW 33.9 KW 40.75 KW 76 KW
2nd STAGE VIBRATOR FEEDER NOT APPLICABLE NOT APPLICABLE 0.75 KW X 1 NOS 0.75 KW
MATERIAL LEVELLER NOT APPLICABLE 0.75 KW X 1 NOS 0.75 KW 0.75 KW X 1 NOS 0.75 KW
SS CONV BELT NOT APPLICABLE 0.75 KW X 3 NOS 2.25 KW 0.75 KW X 3 NOS 2.25 KW
BRUSH AND MIXER NOT APPLICABLE 0.75 KW X 2 NOS 1.5 KW 0.75 KW X 2 NOS 1.5 KW
ID FAN NOT APPLICABLE 2.2 KW X 6 NOS 13.2 KW 2.2 KW X 6 NOS 13.2 KW
FD FAN NOT APPLICABLE 3.7 KW X 3 NOS 11.1 KW 3.7 KW X 3 NOS 11.1 KW
TOTAL KW NOT APPLICABLE 29.55 KW  29.55 KW
TOTAL CONNECTED LOAD

33.9 KW 70.3 KW 105.55 KW
HEATING MEDIA REQUIREMENT
(HOT WATER BOILER / STEAM BOILER)


6 LACKS KCAL/HR 15 LACKS KCAL/HR 25 LAKHS KCAL/HR
DRYER EFFICIENCY

70.00% 70.00% 70.00%
OVERALL SPACE REQUIRED FOR DRYER (L X W X H_in mtr )

17 MTR X 4.2 MTR X 5 MTR 18 MTR X 4.2 MTR X 5 MTR 19 MTR X 4.2 MTR X 5 MTR
*DISCLAIMER - MOISTURE TO EVAPORATE, DRYING TIME & HEAT LOAD DEPENDS UPON THE RAW MATERIAL CONDITION, INITIAL MOISTURE CONTENT, REQUIRED FINAL MOISTURE, LOCATION OF THE PLANT, ENVIRONMETAL CONDITIONS ETC.
ALL DESIGN RIGHTS RESERVED BY OPTYTECH ENGINEERS.
