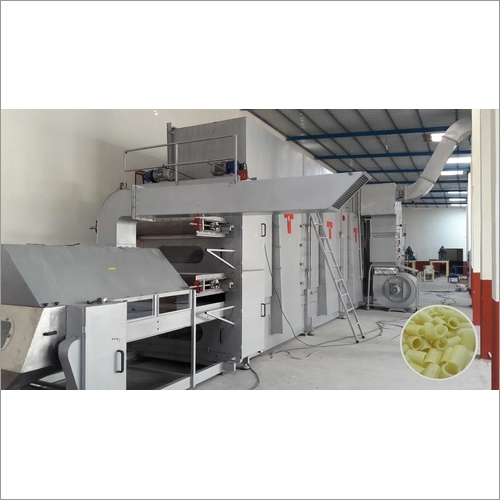

Fryums 2D 3D Drying Plants HAG Base

Fryums 2D 3D Drying Plants HAG Base
Fryums 2D 3D Drying Plants HAG Base
Send Inquiry
Product Code : FDP HAG 1 (500KG/HR)
Product Description

Fryums 2D 3D Drying Plants HAG Base




DRYER TECHNICAL SPECIFICATION
Model MODEL – III_
Product FRYMUS- EXTRUDED 2D/3D
Capacity 500 KG\HR

POWER
Centrifugal Exhaust blower 13.2 KW (2.20 KW X 6 NOS.)
Cooling Blower 1.5 KW (0.75 KW X 2NOS)
Conveyor Gear drive 3.75 KW (0.75 KW X 5 NOS.)
Material mixer drive 1.5 KW (0.75 KW X 2 NOS.)
Vibrator Feeder 0.75 KW ( 0.75 KW X 1 NOS )
Total Hp Dryer 20.7 KW
Working temperature 70 – 80 C
Heating media req HOT AIR GENERATOR 3 LACKS KCAL-HR
Drying Bed Area 1.5 mtr x 15mtr +2.5Mtr COND BELT
No of Layer 5 Layers
Dryer Efficiency 70.00%

Over all space require for dryer
( Length x Width x Height _ in mtr)
20.5 MTR X 3 MTR X 4 MTR
(ALL SPECIFICATION AND DESIGN RIGHT RESERVED BY -OPTYTECH.)










HOT AIR BOILER TECHNICAL SPECIFICATION
Model Model_III
Product HOT AIR BOILER
Capacity 3.0 LACKS KCAL HR

POWER
Centrifugal CA blower 20.0 KW (20.0 KW X 1NOS.)
Furnace Id Fan 5.0 KW
Total 25.0KW
Working temperature 100 –120 C
Fuel consumption 140-150 kg- wood ( GCV 2400 )
No of PASS 5 pass
Dryer Efficiency 70.00%
Over all space require for dryer ( Length x Width x Height _ in mtr) 8MTR X 5 MTR X 5 MTR
