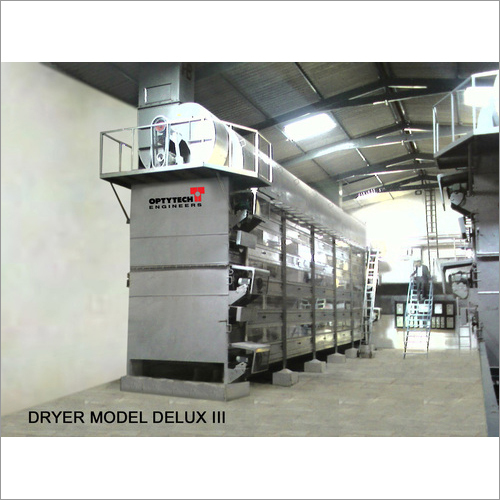

5 TPD Vegetable Dehydration Plant

DRYER TECHNICAL SPECIFICATION CAPACITY- 5000 KG DAY

MODEL

MODEL-V

PRODUCT

CAROOT, POTATO, GARLIC, CHILLEY, ETC& UN-REAP FRUITS.

CAPACITY

5000 KG DAY- 250 KG-HR--FINAL MOISTURE 8-10%

MATERIAL INPUT

1250 KG HR. INITIAL MOISTURE78-80%

MOISTURE TO EVAPORATE

1000 KG-HR

HEAT LOAD

13,00,000 KCAL HR @ 70% DRYER EFFICIENCY

SUJJESTED HEAT EQUIPMENT

15,00,000 K CAL HR

TOTAL DRYING BED AREA

150 SQ.MTR

MATERIAL BED THICKNESS

70-80MM MAT THICKNESS

DRYING TIME

4-5 HOURS

1ST STAGE DRYING BED AREA X LAYER

1.5MTR X 15 MTR 5LAYER---112 SQ.MTR

1ST STAGE WORKING TEMPERATURE

70-80C

2ND STAGE DRYING BED AREA X LAYER

1.5MTR X 10 MTR 3 LAYER--- 45 SQ.MTR

2ND STAGE WORKING TEMPERATURE

45-55C

POWER

1ST STAGE

ID FAN

11 KW X 6 NOS

66 KW

CONV DRIVE

0.75 KW X 5 NOS

3.75 KW

MAT FEED DRIVE

0.75 KW X 3 NOS

2.25 KW

ELEVATOR DRIVE

0.75 KW X 1 NOS

0.75 KW

2ND STAGE

ID FAN

1.5 KW X 8 NOS

12 KW

CONV DRIVE

0.75 KW X 3 NOS

2.25 KW

TOTAL

87 KW

HEAT CONSUMPTION

15,00,000 K CAL \HR

Dryer Efficiency

70.00%

Over all space require for dryer ( Length x Width x Height _ in mtr)

(20.5 + 1.5 + 12.5) 34.5 MTR X 3.8 MTR X 5 MTR
